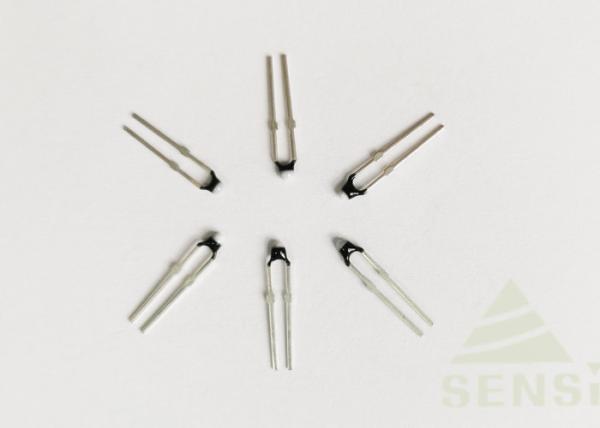

0.5 Tin Plated 42 Alloy Lead Wire Epoxy Thermistor

Name: 05 Tin Plated 42 Alloy Lead Wire Epoxy Thermistor
Brand: Hefei Minsing
Price: 1 USD

0.5 Tin Plated 42 Alloy Lead Wire Epoxy Thermistor Manufactures

Brand Name : Hefei Minsing

Model Number : MF5A-3T

Certification : REACH ,ROHS

Place of Origin : China

MOQ : 500pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50 Million Pieces Per Year

Delivery Time : 2-10 work days

Packaging Details : Bulk

Head Material : Epoxy

Lead wire : 0.5 tin plated 42 alloy

Head Size : Φ2.4×Φ3.7mm

Wire Length : 17mm

R25℃ : 0.5KΩ-2000KΩ

B Value : 3000K-4500K

R Tolerance : 0.5%,1%,2%,3%, 5%

B Tolerance : 0.5%,1%, 2%,3%, 5%

Contact Now

103AT-2 Series Epoxy Thermistor , 0.5 Tin Plated 42 Alloy Lead Wire with Tie Bar, Uniform Shape

Product Feature:

Uniform shape facilitates automated assembly / Long term reliability

Application:

Office automation, measuring instruments, controllers, mobile devices,battery chargers, battery packs,

fan motors, home electronics, HVAC equipment, solar systems, security, thermometers, automotive,

vending machines, refrigerated display cases, agricultural equipment

0.5 Tin Plated 42 Alloy Lead Wire Epoxy Thermistor

Caution:

• When bending the lead wires using for example a radio plier make sure to have a minimum distance from the
sensor head of 3 mm.
• Do not apply a mechanical load of more than 2 N in the way depicted in Fig. 1 below. The variation of the load
direction should be less then 0.3 mm (see Fig. 2).

0.5 Tin Plated 42 Alloy Lead Wire Epoxy Thermistor
