High Reliability , Flange NTC Temperature Sensors , Fast Heating , For Water Heater
Hefei Minsing Automotive Electronic Co., Ltd. is Chinese leading NTC manufacturer, starting researching and developing thermal sensitive ceramic powder ,chipping , elements, and sensors from 1994 . After many years constant efforts , we now achieved mature chipping craft and mass scale production . The variety models of our precise thermistor elements used extensively in household electrical appliances , Auto. electronics , electrical instruments , telecom equipments , medical apparatus, industry meters and military devices .
Product Feature:
Temperature sensor design and production
Easily fixed / Nice Looking
Application:
Dryer / Water heater / Microwave oven / Electric cooker / Heater / Roaster / Toaster
Specification Explain:
SJ MF P -4 -3950 -502 F
① ② ③ ④ ⑤ ⑥ ⑦
① Minsing Co.,Ltd
② NTC thermistor
③ Encapsulation probe
P: Anomalous probe encapsulated
④ Anomalous probe types:
1 .Copper crimp type, 2. Surface testing type, 3. Bullet type,
4 .Flange type, 5. Cap shell type, 6 .Screw thread type, 7. Clamp type
⑤ B value(B 25/50℃) Example: 3950:B 25/50℃: 3950
⑥ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ
⑦ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| SJMF□-□280-301□ | 0.3 | 2800 | ln still air 2.1~15mW/℃ | ln still air 25~65s | -40～150℃ |
| SJMF□-□338/350-202□ | 2 | 3380/3500 |
| SJMF□-□327/338-502□ | 5 | 3270/3380 |
| SJMF□-□327/338-103□ | 10 | 3270/3380 |
| SJMF□-□347/395-103□ | 10 | 3470/3950 |
| SJMF□-□395-203□ | 20 | 3950 |
| SJMF□-□395/399-473□ | 47 | 3950/3990 |
| SJMF□-□395/399-503□ | 50 | 3950/3990 |
| SJMF□-□395/399-104□ | 100 | 3950/3990 |
| SJMF□-□420/425-204□ | 200 | 4200/4250 |
| SJMF□-□440-474□ | 470 | 4400 |
| SJMF□-□445/453-145□ | 1400 | 4450/4530 |

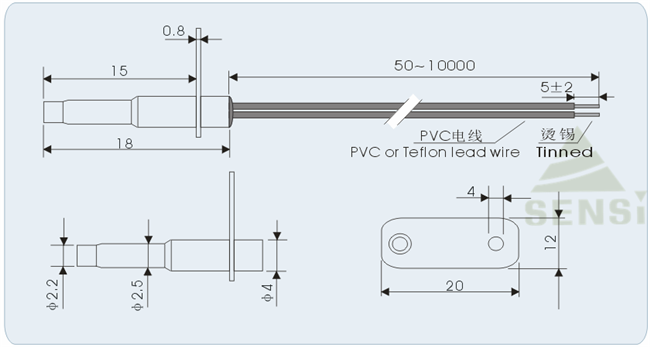

The sizes above are for reference only. Different encapsulation and electrical parameter can be custom made as requirement.
